Securitron WSS Wave Sense Switch

No-touch switch for hands-free activation

The Wave Sense Switch features a new class of motion sensing technology for hands-free, contactless switch activation. Use for request to exit (REX), activation or on/off switching to trigger a variety of access control devices in place of a push plate or push button.

Product Features

• Active microwave motion sensing using Doppler radar—more reliable than infrared sensors
• Adjustable sensing zone from 4” to 24” helps screen out incidental traffic
• Microwave sensing FCC certified for use in general and medical environments
• Touchless activation for hands-free operation, reduces transmission of germs
• Pulse mode to initiate action or toggle mode to provide on/off switch

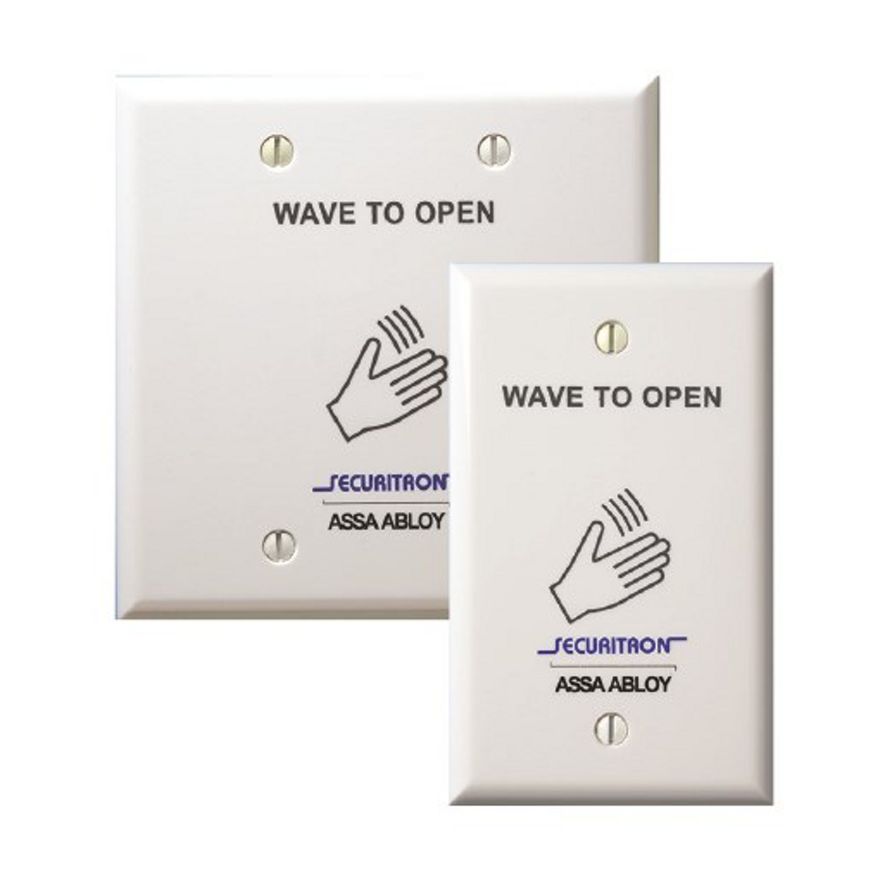

• Offered in a single-gang or double-gang model
• Mounting ring included or install in standard plastic or metal gang box
• Water resistant—foam gasket included
• Compatible with Securitron WBB Weather Back Box and WCC Weather Cover-Clear

Specification Data

• Electromagnetic compatibility according to 2004/108/EC
• FCC: G9B-MS08
• IC: 4680A-MS08

Dimensions:
Single gang faceplate:
4-1/2” x 2-3/4”
Double gang faceplate:
4-1/2” x 4-1/2”

Current:
Self-sensing 12 or 24V DC or AC input (± 10%)
Maximum power consumption: less than 1.5W (125 mW at 12 VDC)
1A SPDT contact can be operated in toggle or pulse mode
Pulse output: 0.5 seconds

Operating Temperature:
-4 to +131F [-20 to +55C]

Shipping Weight:
0.5 lbs

Models
